Xunda Cable

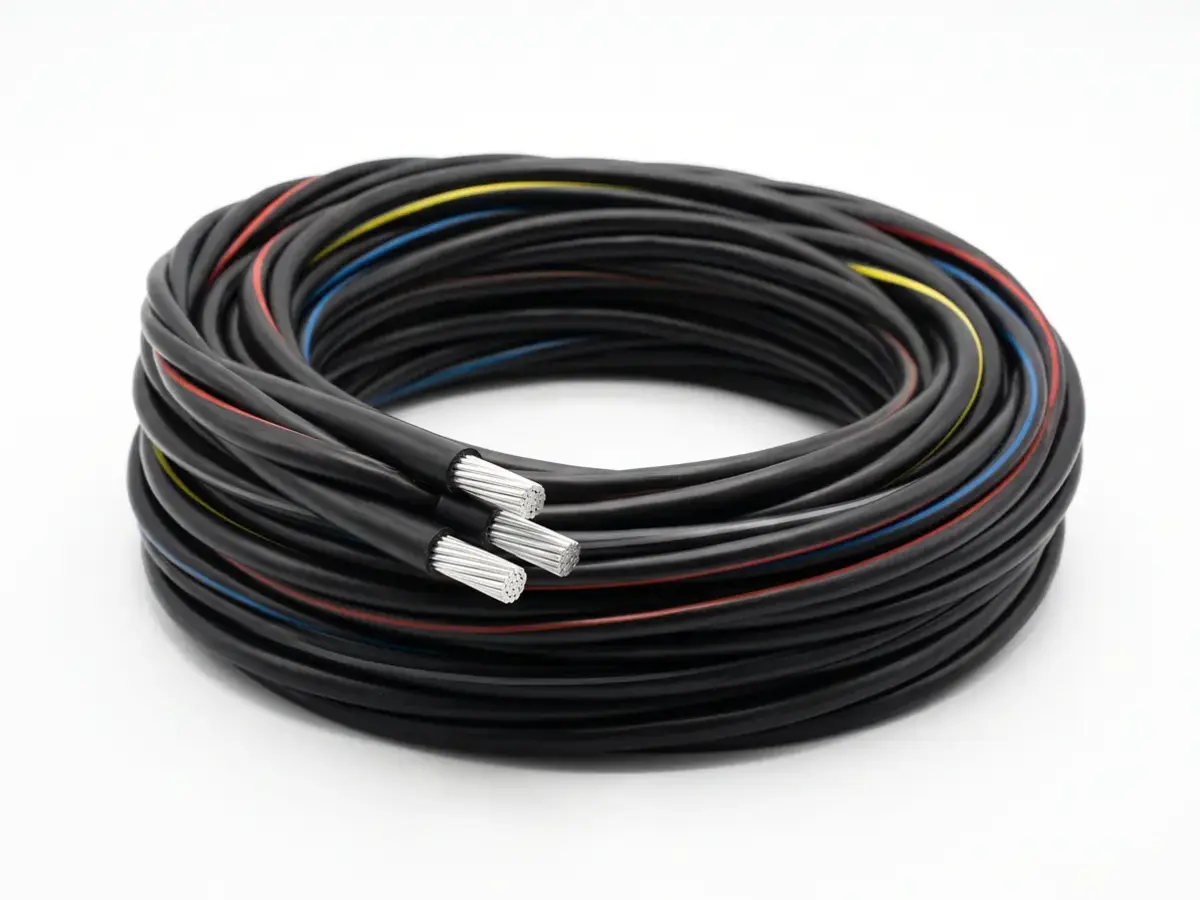

Xunda 0.6/1kV Aluminium XLPE Aerial Bundled Cable (ABC)
Overhead aerial bundled cable with stranded aluminium conductors and XLPE insulation, single to quadruplex.
Aerial bundled cable replaces bare overhead conductors on low voltage distribution lines, cutting the risk of faults from contact, theft and storm damage. Stranded aluminium conductors (AAC or AAAC) are insulated with XLPE and twisted together in single, duplex, triplex or quadruplex formations with an optional bare or insulated messenger. Rated 0.6/1 kV and manufactured to IEC, ASTM, BS, ICEA, GB/T, NF C and SANS references, it is supplied on wooden or steel drums.
| Manufacturer | Henan Xunda Cable Co., Ltd. |
|---|---|
| Model | ABC |
| HS code | 8544.49.29 |
| Minimum order | 1,000 meters |
| Lead time | 25-40 days |
| Packaging | Wooden, steel or steel-wooden drums / pallets, approx. 110 x 110 x 110 cm |
Technical specifications
| Cable Type | Aerial bundled overhead cable |
|---|---|
| Conductor Material | Aluminium (AAC / AAAC), stranded |
| Insulation | XLPE |
| Rated Voltage | 0.6/1 kV |
| Formation | Single / duplex / triplex / quadruplex |
| Standards | IEC, ASTM, BS, ICEA, GB/T, NF C, SANS |
| Application | Overhead power distribution and service drops |
| Testing | 100% tested |
| Packing | Wooden, steel or steel-wooden drums, pallets |
| Origin | Henan, China |
Certificates listed by manufacturer
Specifications as published by the manufacturer; subject to change without notice. Brand names and trademarks belong to their respective owners.
