Cynid

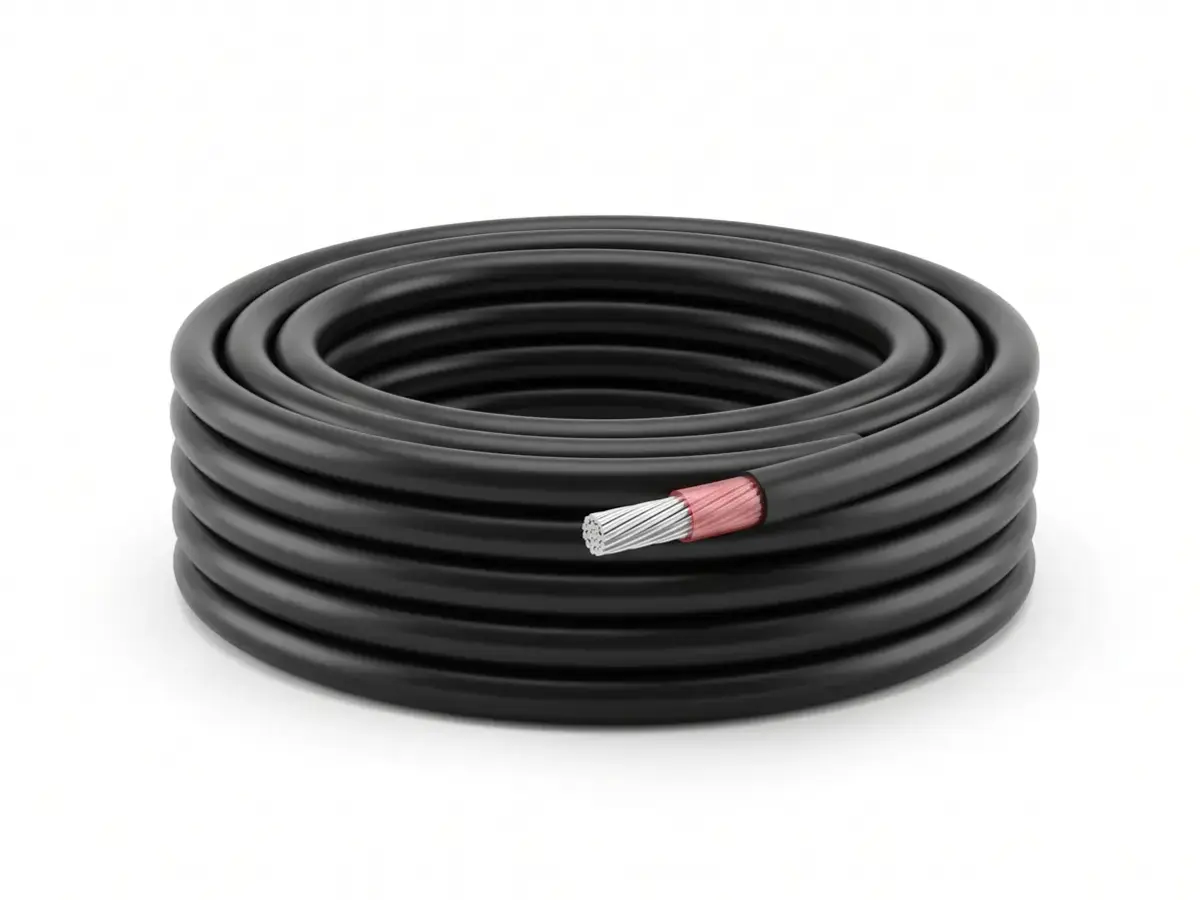

Cynid YJLV 0.6/1kV Aluminium Conductor XLPE Unarmoured Power Cable
Unarmoured 0.6/1 kV underground power cable with aluminium or copper conductor, XLPE insulation and PE/PVC sheath.
Manufactured to GB/T 12706.1, this unarmoured low-voltage cable is intended for underground ducts, cable trays and industrial distribution where mechanical protection is provided by the installation itself. The aluminium (or copper) conductor is XLPE insulated and covered with a PE, PVC or LSZH sheath, with flame-retardant and fire-resistant constructions available. Cores range from 1 to 5 and cross-sections from 1.5 mm2 to 1000 mm2, supplied on export wooden drums.
| Manufacturer | Cynid Electric Power Co., Ltd. |
|---|---|
| Model | YJV/YJLV |
| HS code | 8544.49.21 |
| Minimum order | 500 meters |
| Lead time | 15-30 days |
| Packaging | Export wooden drums, approx. 110 x 110 x 110 cm per drum |
Technical specifications
| Cable Type | Unarmoured underground power cable |
|---|---|
| Conductor Material | Aluminium or copper |
| Number of Cores | 1 - 5 cores |
| Cross-Section Range | 1.5 - 1000 mm2 |
| Insulation | XLPE (PVC / EPR options) |
| Sheath | PE / PVC / LSZH |
| Rated Voltage | 0.6/1 (1.2) kV |
| Standard | GB/T 12706.1 |
| Additional Features | Flame retardant and fire resistant versions |
| Sheath Colours | Black, grey, blue, green, yellow or to order |
| Current Type | AC and DC |
| Origin | China |
Certificates listed by manufacturer
Specifications as published by the manufacturer; subject to change without notice. Brand names and trademarks belong to their respective owners.
