Guowang

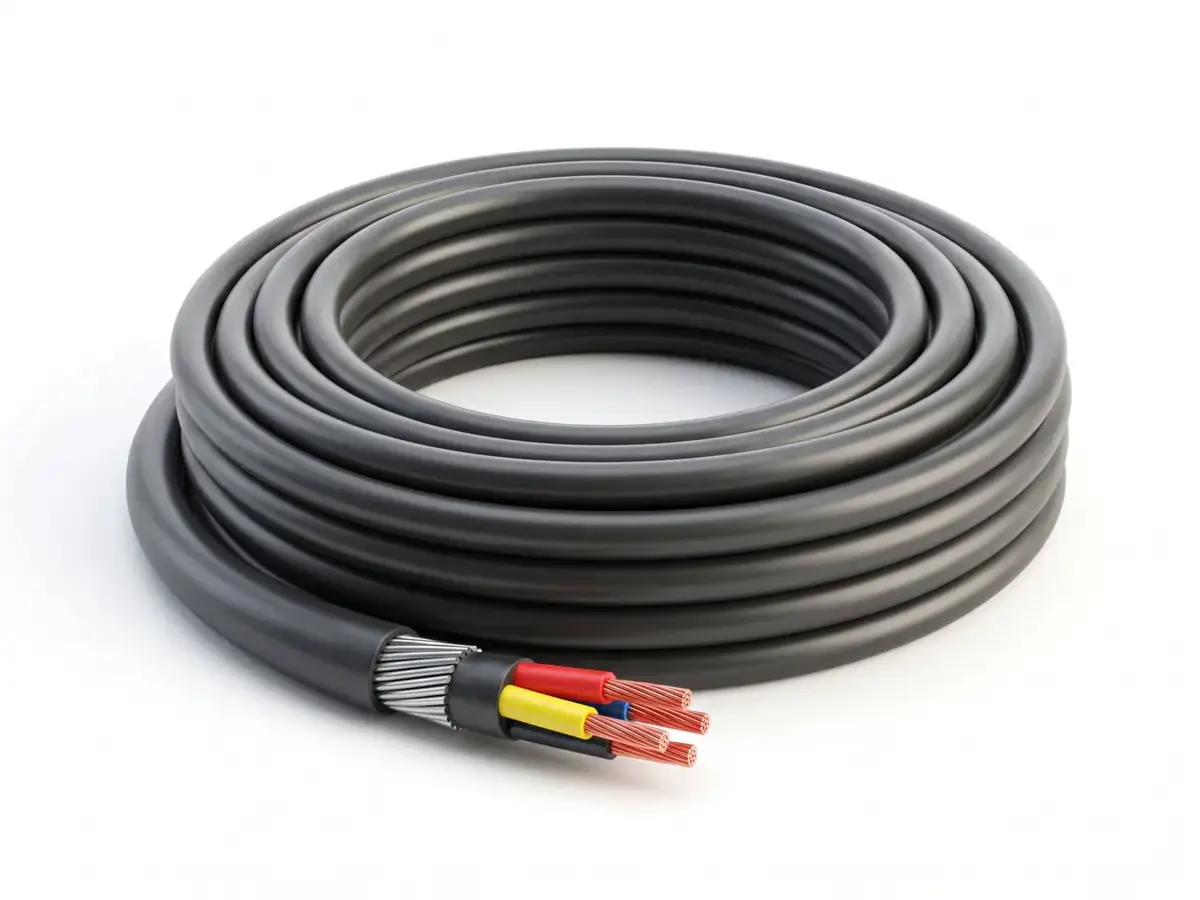

Guowang YJV22 0.6/1kV Copper XLPE Steel Wire Armoured Power Cable
Low-voltage armoured power cable with copper conductors, XLPE insulation and PVC outer sheath, 1-4 cores.
YJV22 is the workhorse low-voltage distribution cable for underground runs, substations and industrial plant feeders. Red copper conductors are XLPE insulated, protected by steel wire or steel tape armour and finished with a PVC outer sheath, giving mechanical strength for direct burial and duct installation. The range covers 1 to 4 cores from 1.5 mm2 up to 630 mm2 at 0.6/1 kV, delivered on wooden drums or pallets.
| Manufacturer | Henan Guowang Cable Group Co., Ltd. |
|---|---|
| Model | YJV22 |
| HS code | 8544.49.21 |
| Minimum order | 500 meters |
| Lead time | 25-40 days |
| Packaging | Wooden drum or pallet, length to order |
Technical specifications
| Cable Type | Armoured low-voltage power cable |
|---|---|
| Conductor Material | Red copper |
| Number of Cores | 1 - 4 cores |
| Cross-Section Range | 1.5 - 630 mm2 |
| Insulation | XLPE |
| Armour | Steel wire armour (SWA) |
| Outer Sheath | PVC |
| Rated Voltage | 0.6/1 kV |
| Current Type | AC |
| Application | Construction, underground, industrial, power stations |
| Packing | Drum or pallet |
| Origin | China |
Certificates listed by manufacturer
Specifications as published by the manufacturer; subject to change without notice. Brand names and trademarks belong to their respective owners.
