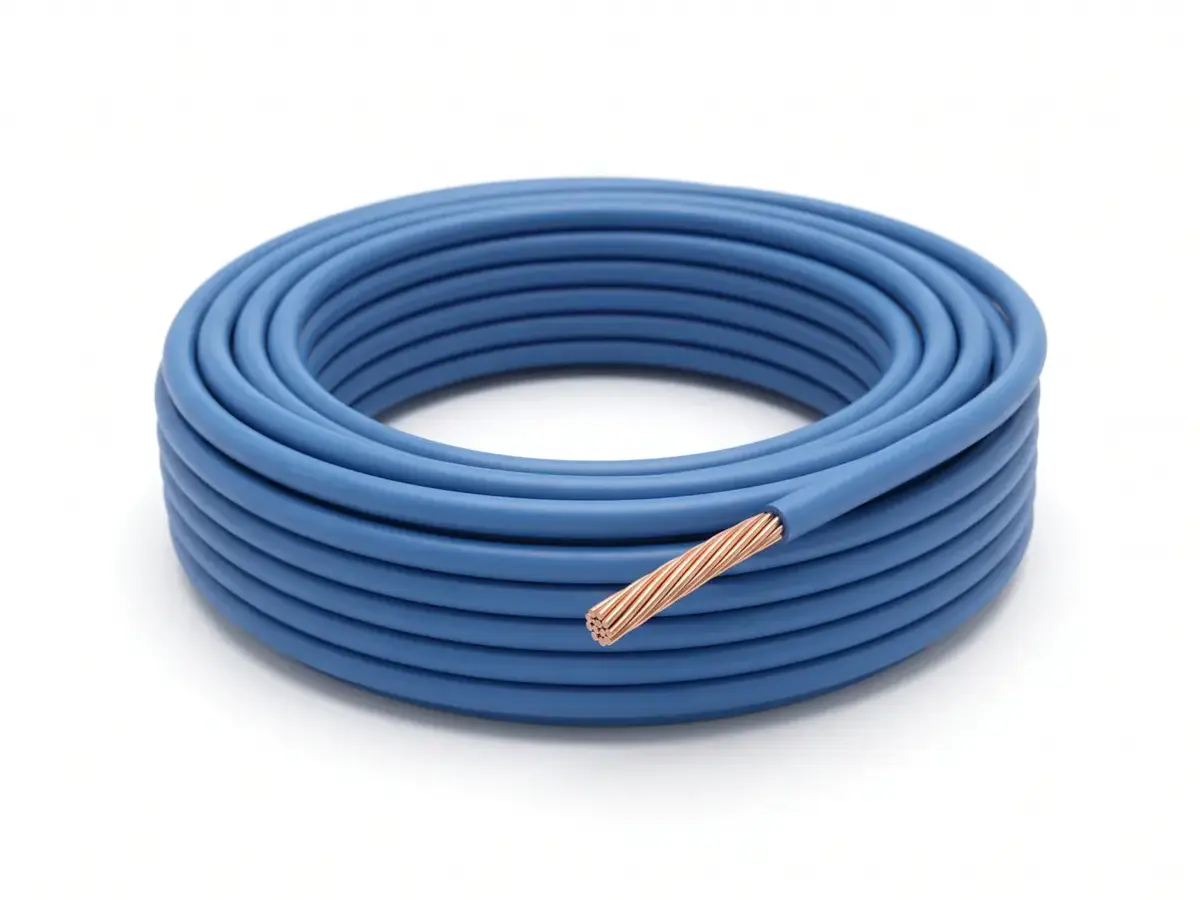

Northern Star BVR 450/750V Stranded Copper Flexible Single-Core Wire

Flexible single-core PVC insulated wire with multi-strand soft copper conductor for conduit and panel wiring.

BVR uses a multi-strand soft copper conductor instead of a solid one, so it bends easily inside conduits, trunking and switchboards where BV would be too stiff. The PVC insulation is rated 450/750V and the wire is offered in sizes from 1.5 mm2 up to 300 mm2 in red, yellow, blue, green and black, with other colours to order. Standard supply is 100 m per roll, with coils, reels and drums available for larger sections.
