Antin AT180G Three-Phase DIN-Rail Smart Energy Meter

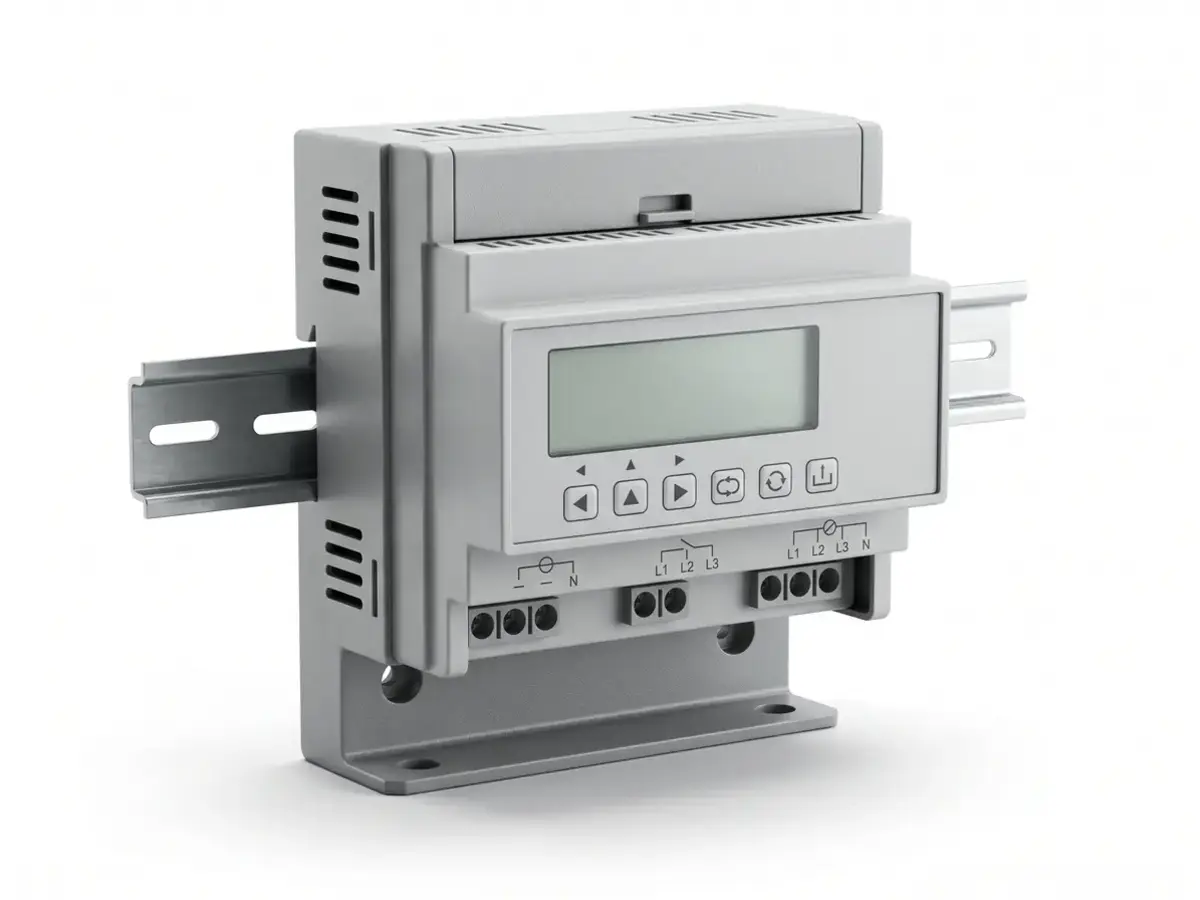

Representative image. Illustration only, not a photograph of the actual product.

Antin

Antin AT180G Three-Phase DIN-Rail Smart Energy Meter

Three-phase four-wire DIN-rail kWh meter with digital display, Modbus RS485 communication, class 1 active accuracy and IP51 housing.

The AT180G is a three-phase four-wire smart energy meter for DIN-rail mounting in distribution boards and sub-metering panels. It works on AC 100/220/230/400 V at 45-65 Hz, reads active energy to class 1 and reactive energy to class 0.5, and reports over Modbus RS485 for building management or tenant billing. The IP51 housing operates from -25 °C to 55 °C at up to 90% RH, with power consumption below 5 W.

ManufacturerHangzhou Antin Power Technology Co., Ltd.
ModelAT180G
HS code9028.30.00
Minimum order50 units
Lead time15-25 days
PackagingPaper carton plus pallets; unit box 12 x 12 x 11 cm, 0.41 kg
Enquire about this productManufacturer product page ↗

Technical specifications

Measuring SystemThree-phase four-wire
VoltageAC 100 / 220 / 230 / 400 V
Frequency45-65 Hz
Accuracy ClassActive class 1, reactive class 0.5
CommunicationModbus RS485
IP ClassIP51
Power Consumption≤ 5 W
Operating Temperature-25 °C to 55 °C
Operating Humidity≤ 90% RH
MTBF≥ 50,000 h
DisplayDigital
Altitude≤ 2000 m

Certificates listed by manufacturer

  • CE
  • ISO

Specifications as published by the manufacturer; subject to change without notice. Brand names and trademarks belong to their respective owners.
